Ford 4×4 Transfer Case with SAE Pump Flange

The LiveDrive 4X4 Plus PTO System solves the space constraints experienced with the left-hand PTO on the 4×4 FORD trucks. By modifying the 4X4 Transfer Case and extending the PTO shaft through the transfer case to an SAE B Pump mount on the rear of the case. Applications include Ford Super-Duty F250, F350, F450, F550, and the F600. Model years from 2017 to 2024

Product Specifications

  • FORD PTO PREP OPTION: 62R
  • ROTATION: Opposite Engine (Clockwise)
  • SHAFT: 7/8″ 13T Spline
  • FLANGE: SAE B, Indexable 30°
  • PTO: MUNCIE – F20-F13 12 XX 5 1X XX

What's in the Kit?

  • Modified Transfer Case
  • Shafts, Flanges and Fasteners
  • Installation Manual
  • Re-usable Crate/Packaging for Core Return
  • KIT DOES NOT INCLUDE PTO

PDF Resources

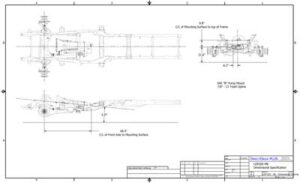

LiveDrive Plus 4x4 LDP-20X-MK-Dimensional-Drawing

LDP 20X MK – Dimensional Drawing

LiveDrive Plus 4x4 LDP-20X-MX-Muncie-F20-SAE-Parts-Illustration

LDP 20X MK Muncie F20 SAE – Parts Illustration

LiveDrive Plus 4x4 -2020-Transfer-Case-Removal_Installation-Manual

LiveDrive 2020 Transfer Case Removal – Installation Manual

LiveDrive Plus 4x4 Warranty-Statement-LiveDrive-Plus-4-14-2021

Warranty Statement – LiveDrive Plus (4/14/2021)

Muncie F20 10 bolt PTO installation guide

Ford 10 Speed PTO – Muncie F20 – Installation – Electrical – Parts – Rebuild
